Regular price £1,495.00 Sale

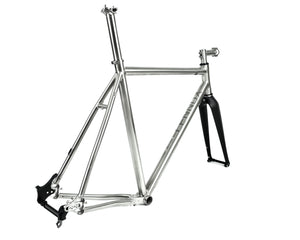

The ultra configurable Daily Grind frameset offers a truly versatile riding experience on and off-road.

Featuring clean internal cable and brake hose routing and Di2 ready, theres a range of build options to suit your riding needs.

Available with your choice of standard finishing options or  custom spec defined by you, contact us to discuss your individual requirements and we can adjust the build price accordingly.

Our frames are backed by a 5 year warranty and a generous crash replacement discount

Standard specification

  • 3AL/2.5V handmade titanium disc frame
  • Internal cable and brake hose routing
  • Mudguard and rack mountings
  • 700c X 42mm tyre clearance front and rear
  • Headset - Hope Pick n Mix
  • Fork - LCC Carbon Gravel Fork 15mm X 100mm  thru-axle
  • 44mm Head tube for use with tapered fork
  • 31.6mm seat post
  • Sliding rear dropouts with 135mm spacing or 12mm X 142mm thru-axle
  • Gates Carbon Belt Drive compatible
  • Shimano Afline / Rohloff internal hubgear compatible
  • Bottom bracket  - BSA 68mm English thread



 Geometry

 Size 52cm 54cm 56cm 58cm
Top tube (effective mm) 525 545 560 575
Seat tube (centre to centre mm) 503 533 544 549
Head tube (mm) 120 140 150 160
Seat tube angle (deg) 73.5 73 73 73
Head tube angle (deg) 71.2 71.3 72 72
Front centre (mm) 580 595 599 614
Chain stay length (mm) 430 430 432 435
BB drop (mm) 75 75 73 70
Reach (mm) 357 366 378 391

Stack (mm)

561 582 593 599
