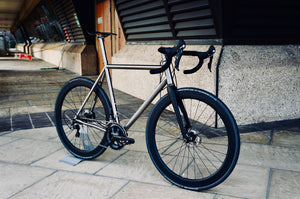

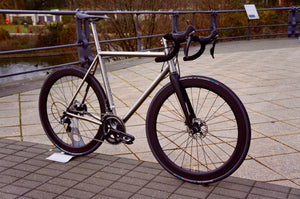

Timeless design.....bleeding edge performance. Our Spectre road bike is a no compromises full on speed machine that delivers the smooth ride quality that you can only get with titanium.
Featuring clean internal cable and brake hose routing and Di2 ready, theres a range of build options to suit your riding needs.
Available with your choice of standard finishing options or custom spec defined by you, contact us to discuss your individual requirements and we can adjust the build price accordingly.
Our frames are backed by a 5 year warranty and a generous crash replacement discount
Features
- 3AL/2.5V handmade titanium disc frame
-
Hope 1 1/8 - 1 1/2 external cup stainless steel bearings
- Fork - LCC Carbon Road Fork 12mm X 100mm thru-axle
- 31.6mm seat post
- Up to 32mm tyre clearance front and rear
- 44mm Head tube for use with tapered fork
- Internal cable/hose routing
- 12 X 142mm thru-axle rear dropouts
- Rear mudguard mounts
- Bottom bracket - T47 threaded
Geometry
| Size
|
52cm |
54cm |
56cm |
58cm |
| Top tube (effective mm) |
525 |
545 |
560 |
580 |
| Seat tube (centre to centre mm) |
490 |
518 |
540 |
565 |
| Head tube (mm) |
115 |
135 |
155 |
175 |
| Seat tube angle (deg) |
74 |
73.5 |
73 |
73 |
| Head tube angle (deg) |
71.2 |
72.2 |
72.5 |
73 |
| Front centre (mm) |
584 |
595 |
594 |
609 |
| Chain stay length (mm) |
412 |
412 |
415 |
415 |
| BB drop (mm) |
75 |
75 |
75 |
73 |
| Reach (mm) |
369 |
378 |
382 |
397 |
| Stack (mm) |
536 |
560 |
580 |
599 |
