Regular price £2,295.00 Sale

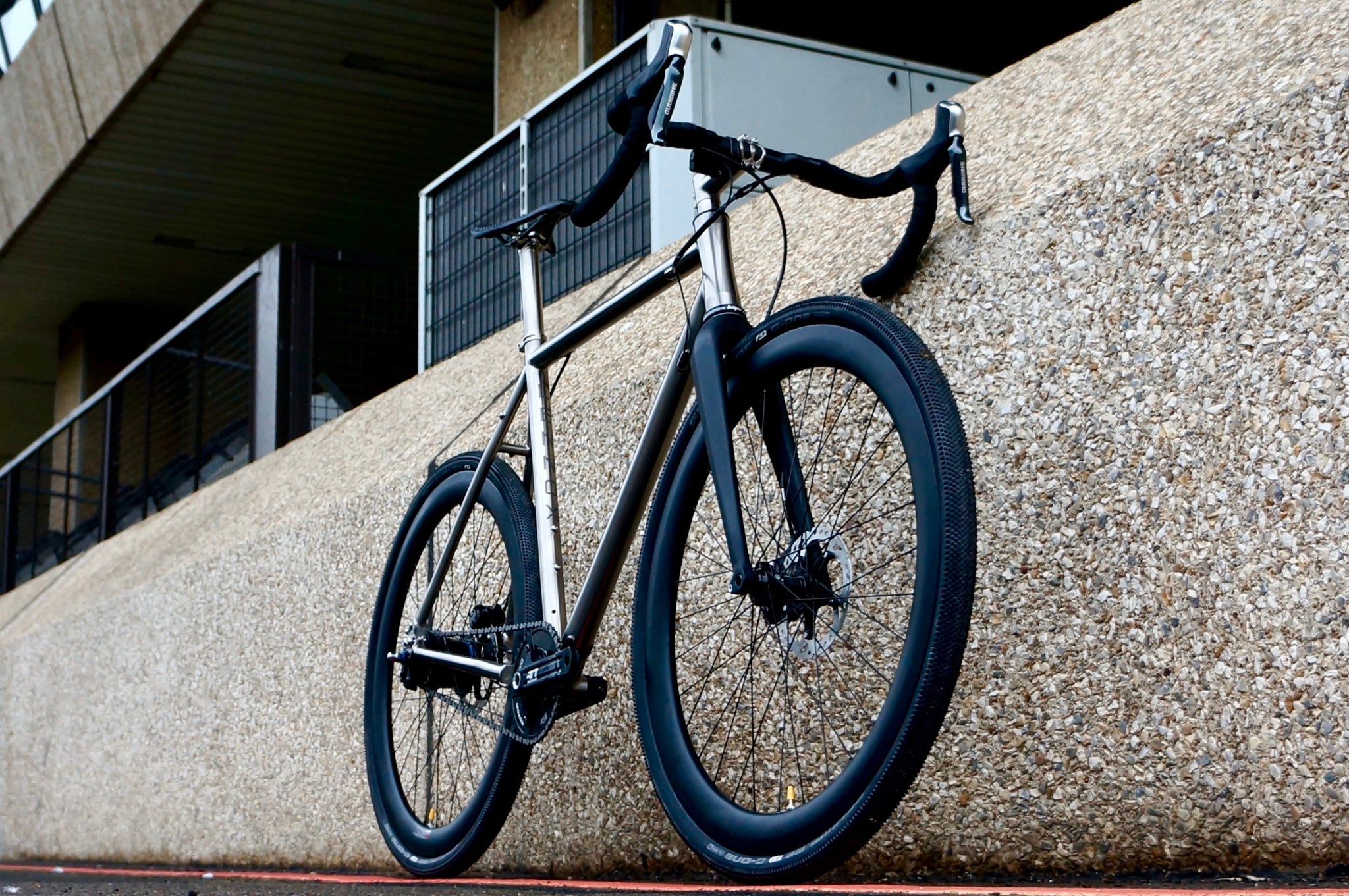

A versatile, go anywhere, do anything titanium gravel (and tarmac!) grinder.

We've packed this frame set with the latest features to offer a multitude of build configurations, so you really can build the bike you need

The Urban is inspired by over a decade of pounding the streets of London on the daily commute.  We wanted to build a bulletproof low maintenance bike that would take anything a British winter could throw at it.

For ultimate in low maintenance clean riding, The Daily Grind features an invisible frame split that allow the fitting of a Gates Carbon Belt Drive.

Designed with the Shimano Alfine 8/11 speed hub gear in mind, it also supports running a traditional derailleur setup front and rear should you wish to.

Available with your choice of standard finishing options or  custom spec defined by you, contact us to discuss your individual requirements and we can adjust the build price accordingly.

Our frames are backed by a 5 year warranty and a generous crash replacement discount

Standard specification

  • 3AL/2.5V handmade titanium disc frame
  • Internal cable and brake hose routing
  • Di2 ready
  • mudguard and rack mountings
  • 700c X 42mm tyre clearance front and rear
  • Headset - Hope Pick n Mix
  • Fork - LCC Carbon Gravel Fork 15 X 100mm thru-axle with mudguard mounting and internal hose routing.
  • 44mm Head tube for use with tapered fork
  • Sliding rear dropouts with 135mm spacing or 12 X 142mm thru-axle
  • Gates Carbon Belt Drive compatible
  • Bottom bracket  - 68mm English thread
  • Wheelset - Handbuilt with DT Swiss spokes - Hope RS4 front hub, choose from aluminium or carbon rims

  • Rear hub - Choose from a range of Shimano Alfine internal hub gear options
  • Chainset - Choose from chain drive of Gates Carbon Belt Drive

  • Brakes - TRP Hylex hydraulic disc brakes (Drop bars)  Shimano Deore XT BR-M8000 (Flat bars) or Shimano ST-R785 (or equivalent) Di2 when you choose Di2 groupset

 Geometry

 Size 52cm 54cm 56cm 58cm
Top tube (effective mm) 525 545 560 575
Seat tube (centre to centre mm) 503 533 544 549
Head tube (mm) 120 140 150 160
Seat tube angle (deg) 73.5 73 73 73
Head tube angle (deg) 71.2 71.3 72 72
Front centre (mm) 580 595 599 614
Chain stay length (mm) 430 430 432 435
BB drop (mm) 75 75 73 70
Reach (mm) 357 366 378 391

Stack (mm)

561 582 593 599
