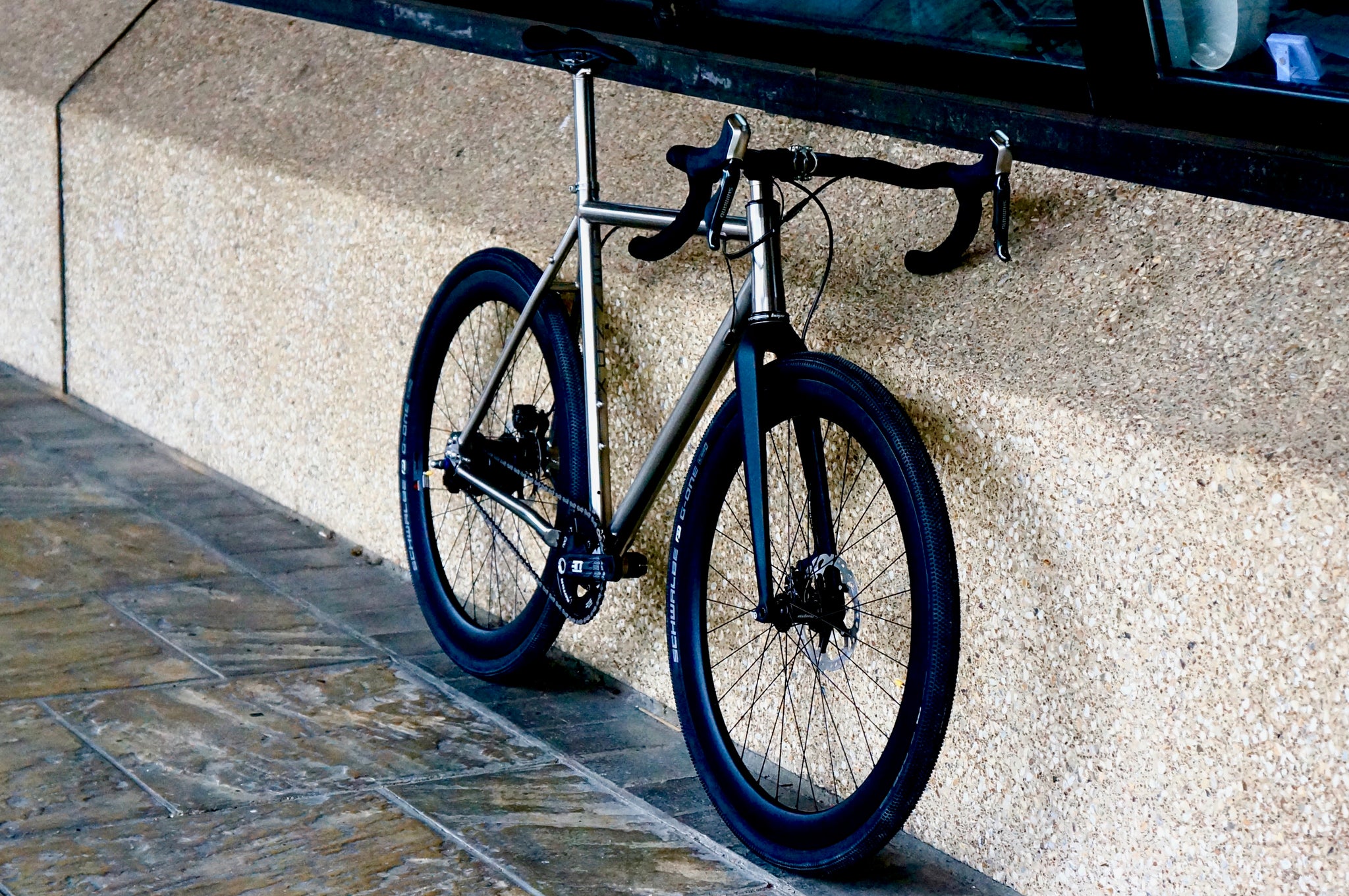

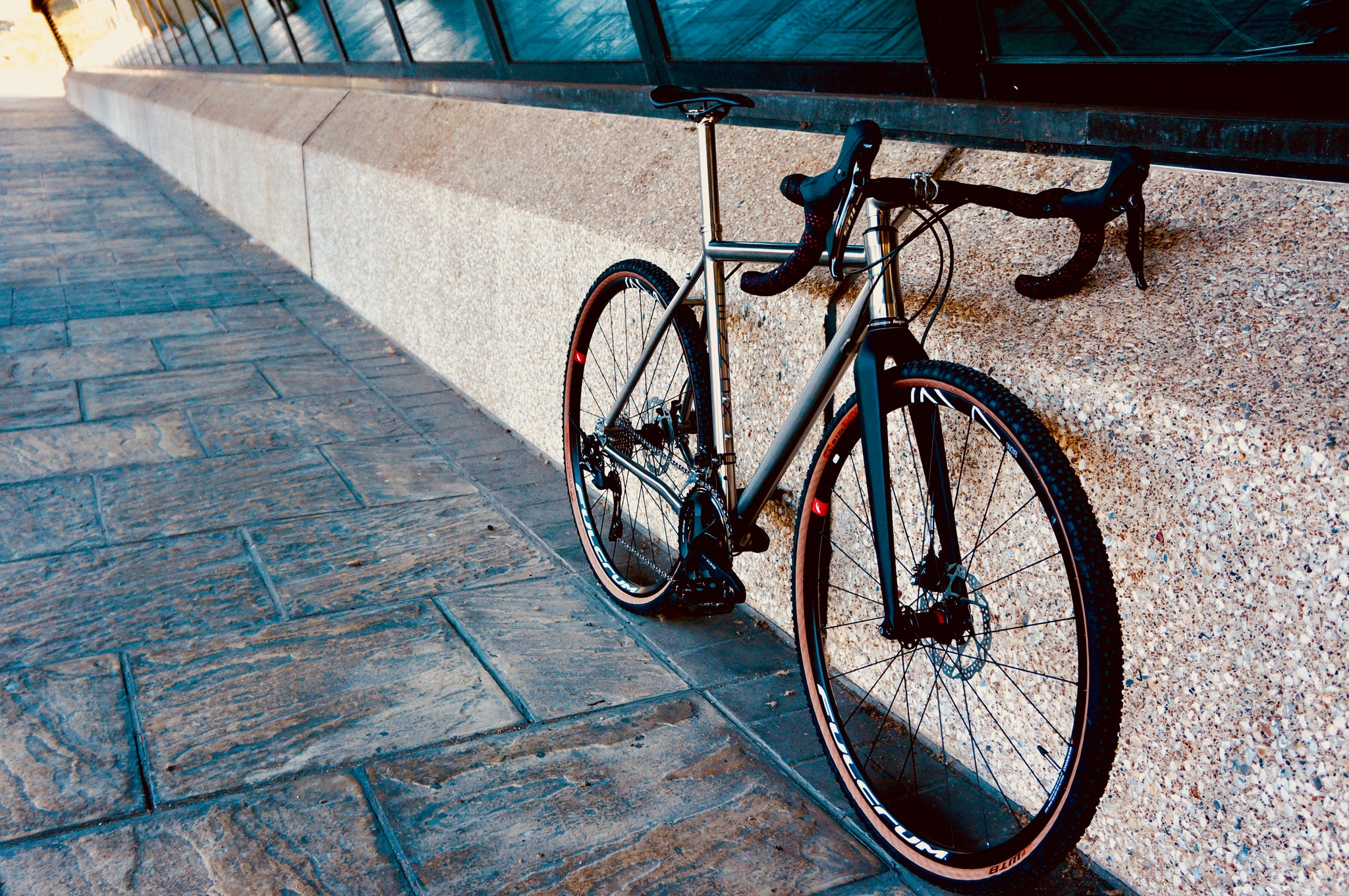

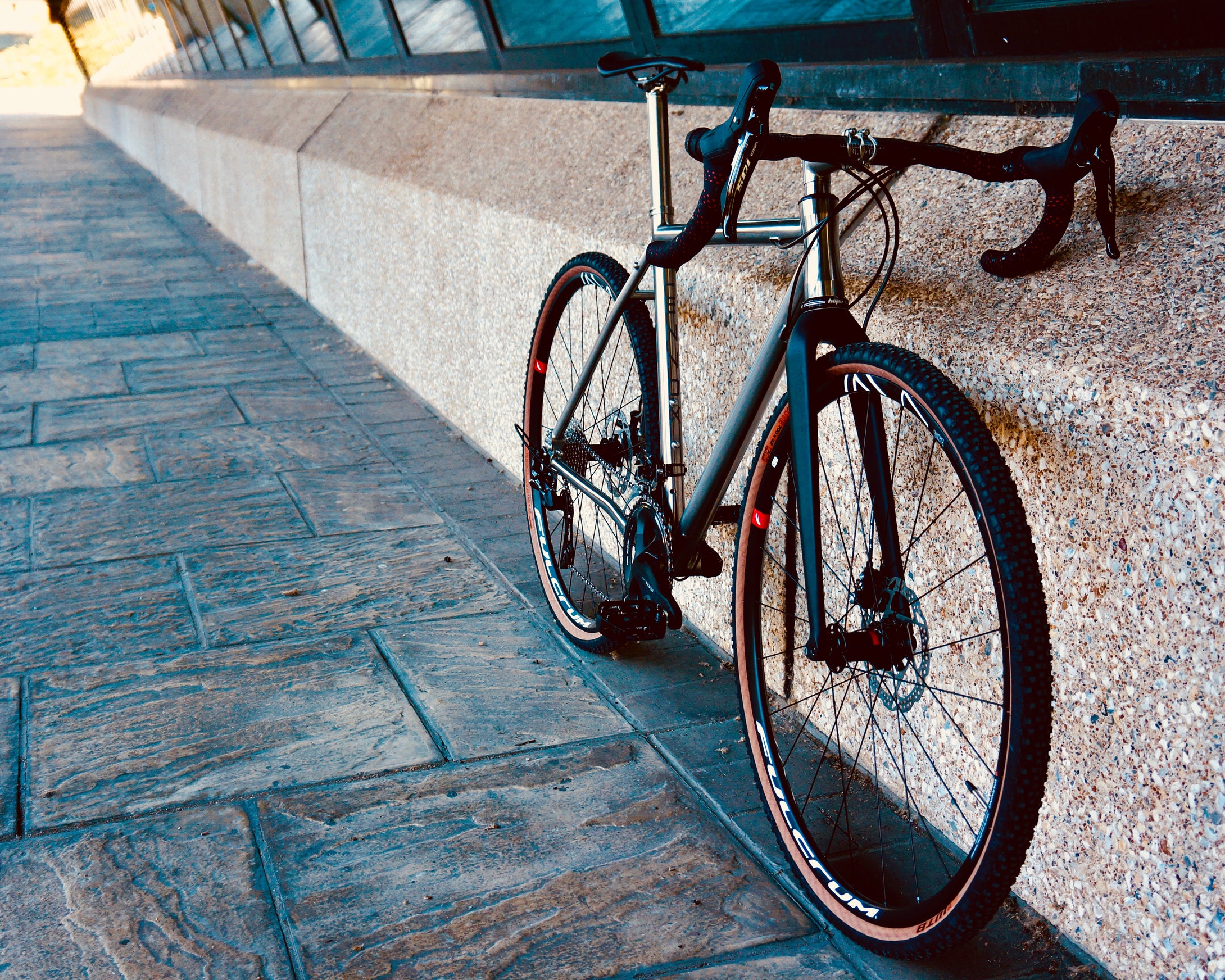

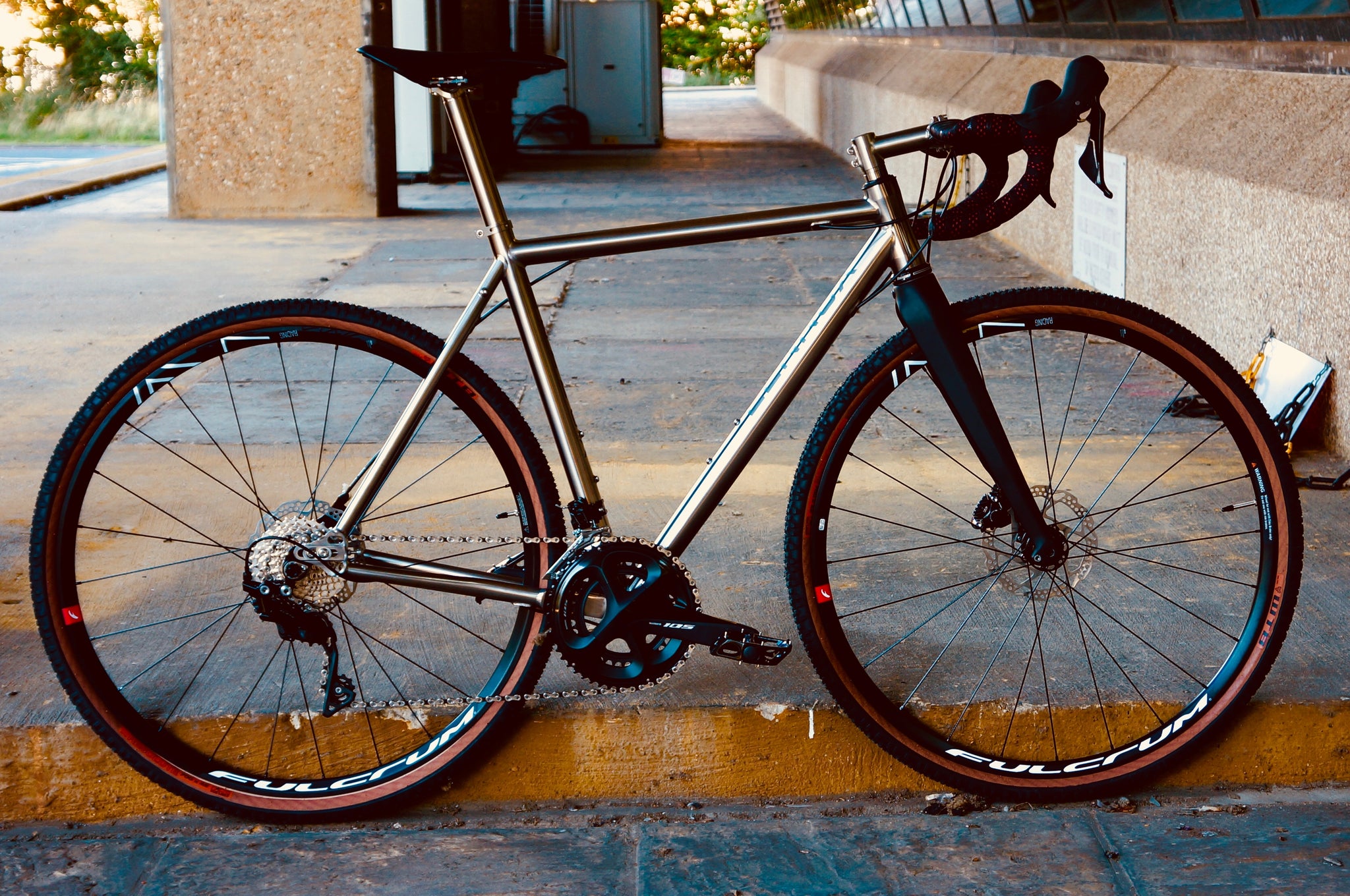

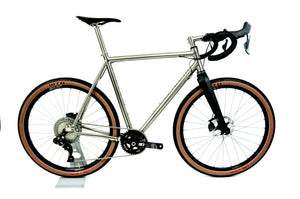

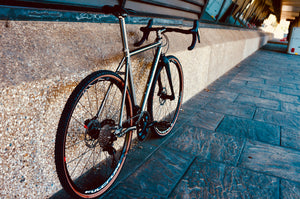

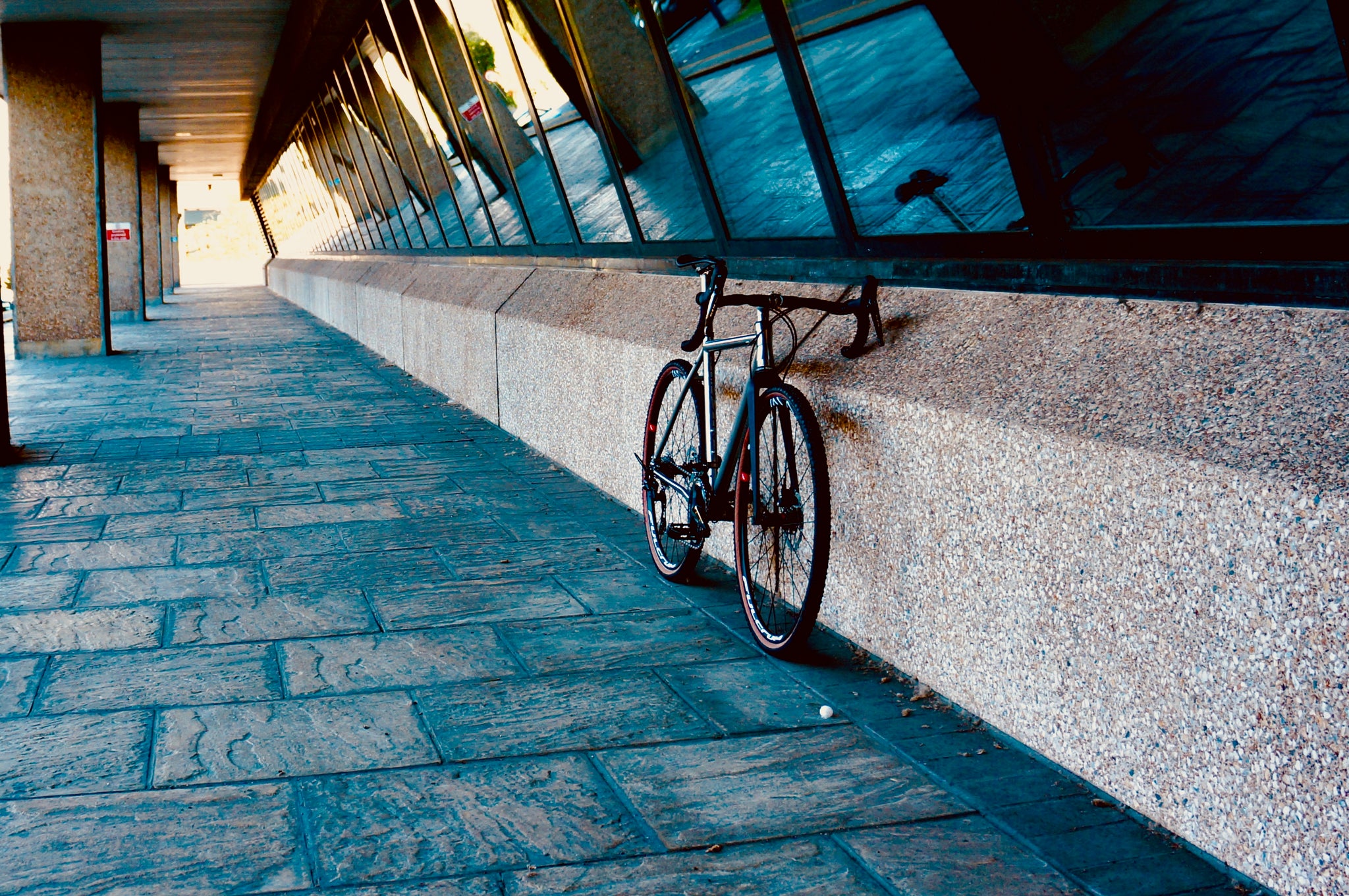

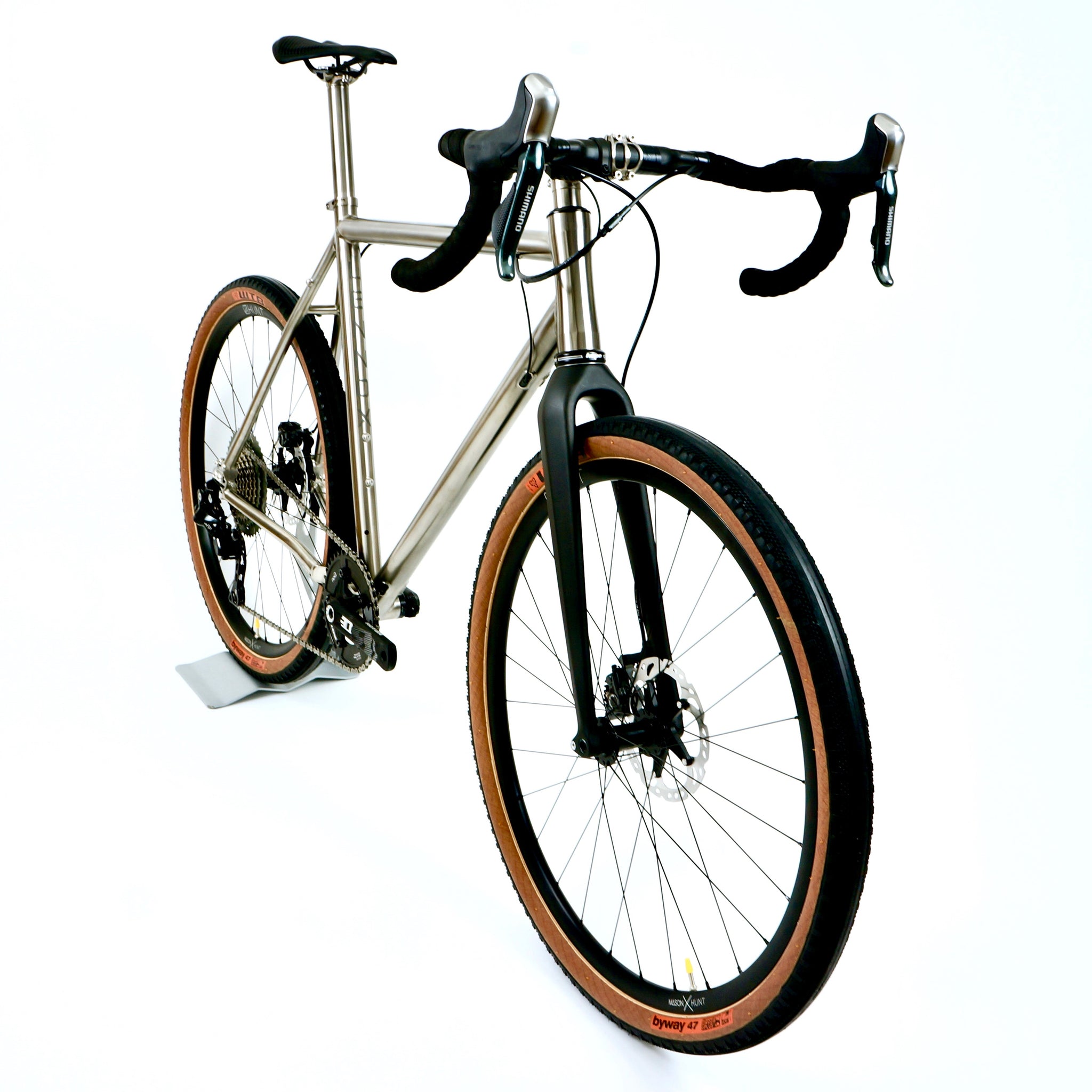

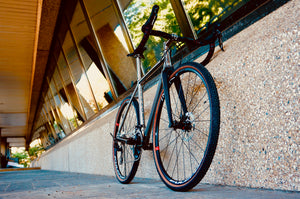

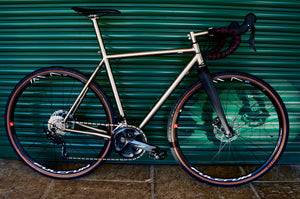

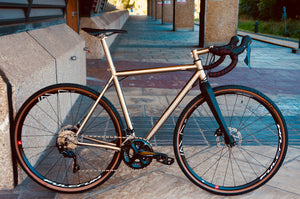

Building on the ultra configurable Daily Grind frameset, the Trail offers a truly versatile riding experience on and off-road.
Featuring clean internal cable and brake hose routing and Di2 ready, theres a range of build options to suit your riding needs.
Available with your choice of standard finishing options or custom spec defined by you, contact us to discuss your individual requirements and we can adjust the build price accordingly.
Our frames are backed by a 5 year warranty and a generous crash replacement discount
Features

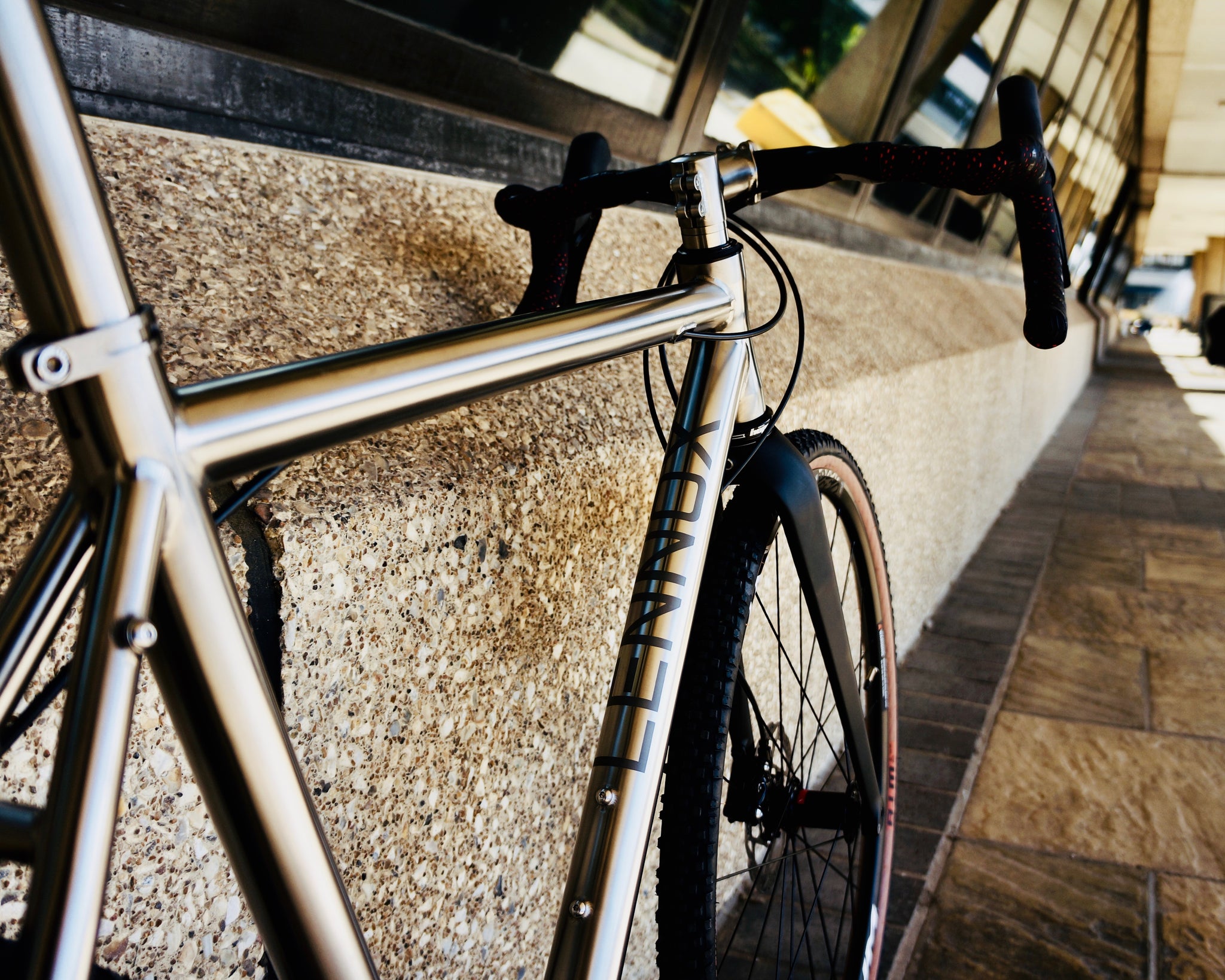

- 3AL/2.5V handmade titanium disc frame
- Internal cable and brake hose routing
- Mudguard and rack mountings
- 700c X 42mm tyre clearance front and rear
- Headset - Hope 1 1/8 - 1 1/2 external cup stainless steel bearings

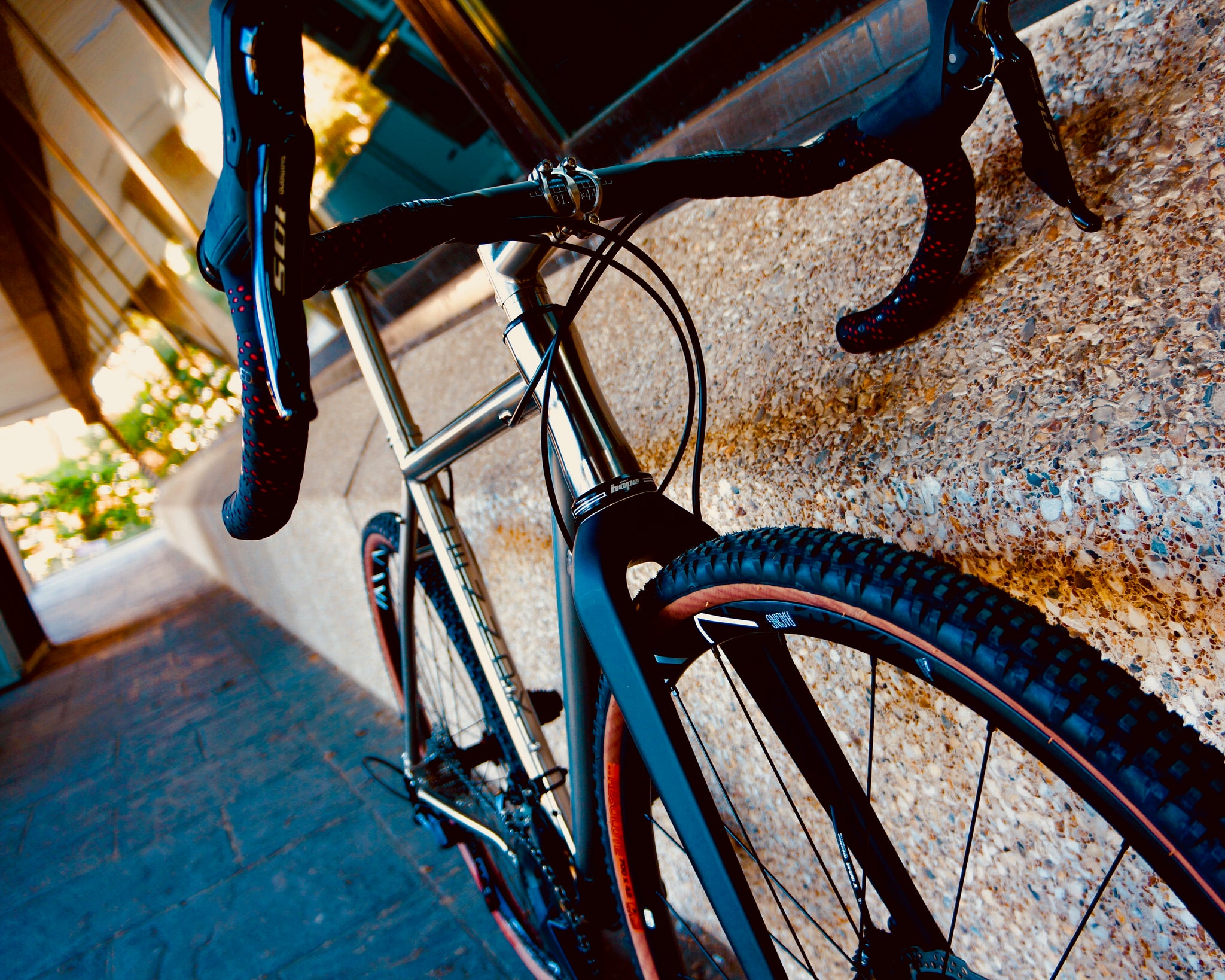

- Fork - LCC Carbon Gravel Fork
- 44mm Head tube for use with tapered fork
- 31.6mm seat post

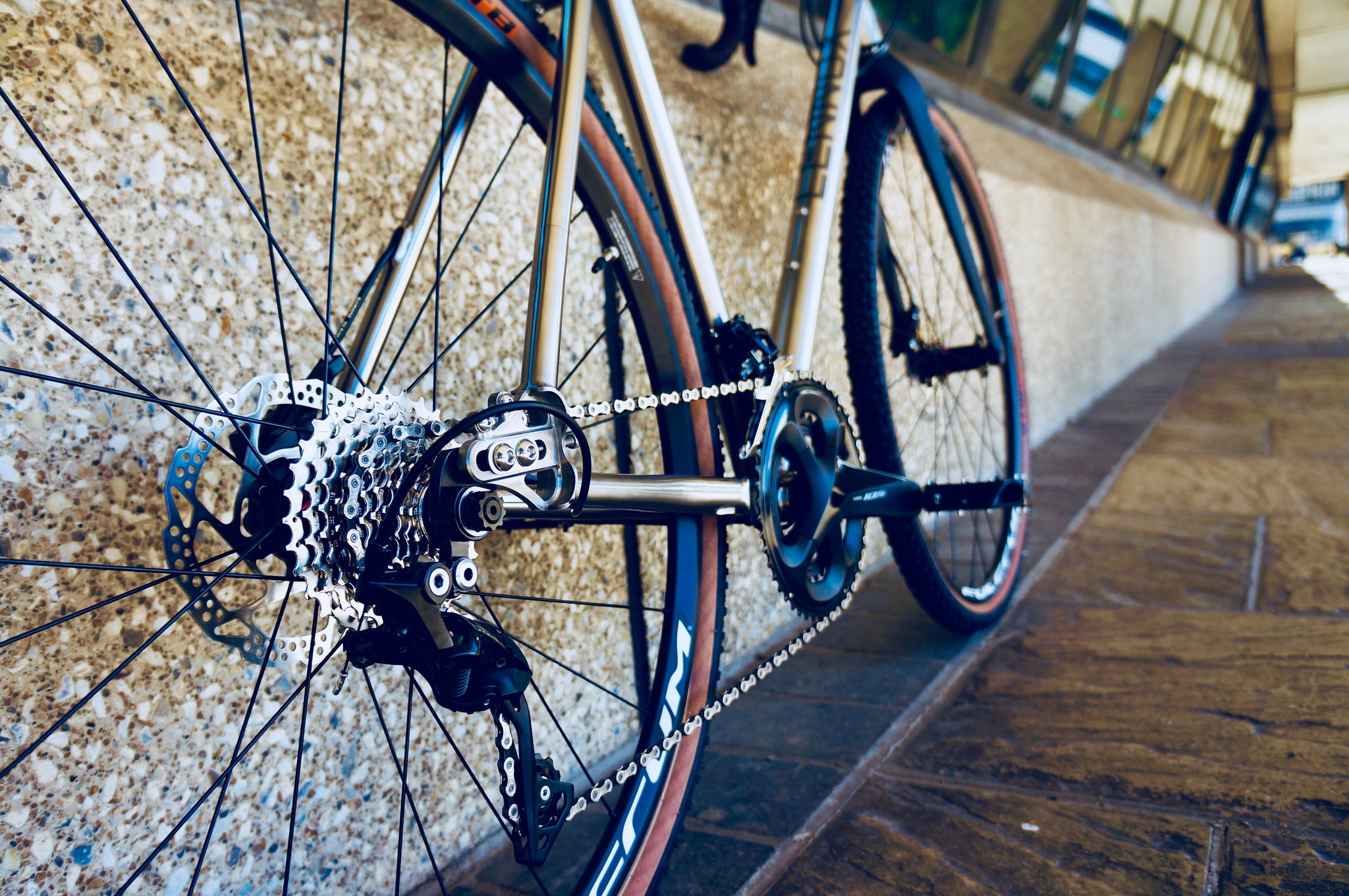

- Rocker rear dropouts with 135mm spacing or 12 X 142mm thru-axle
- Gates Carbon Belt Drive compatible

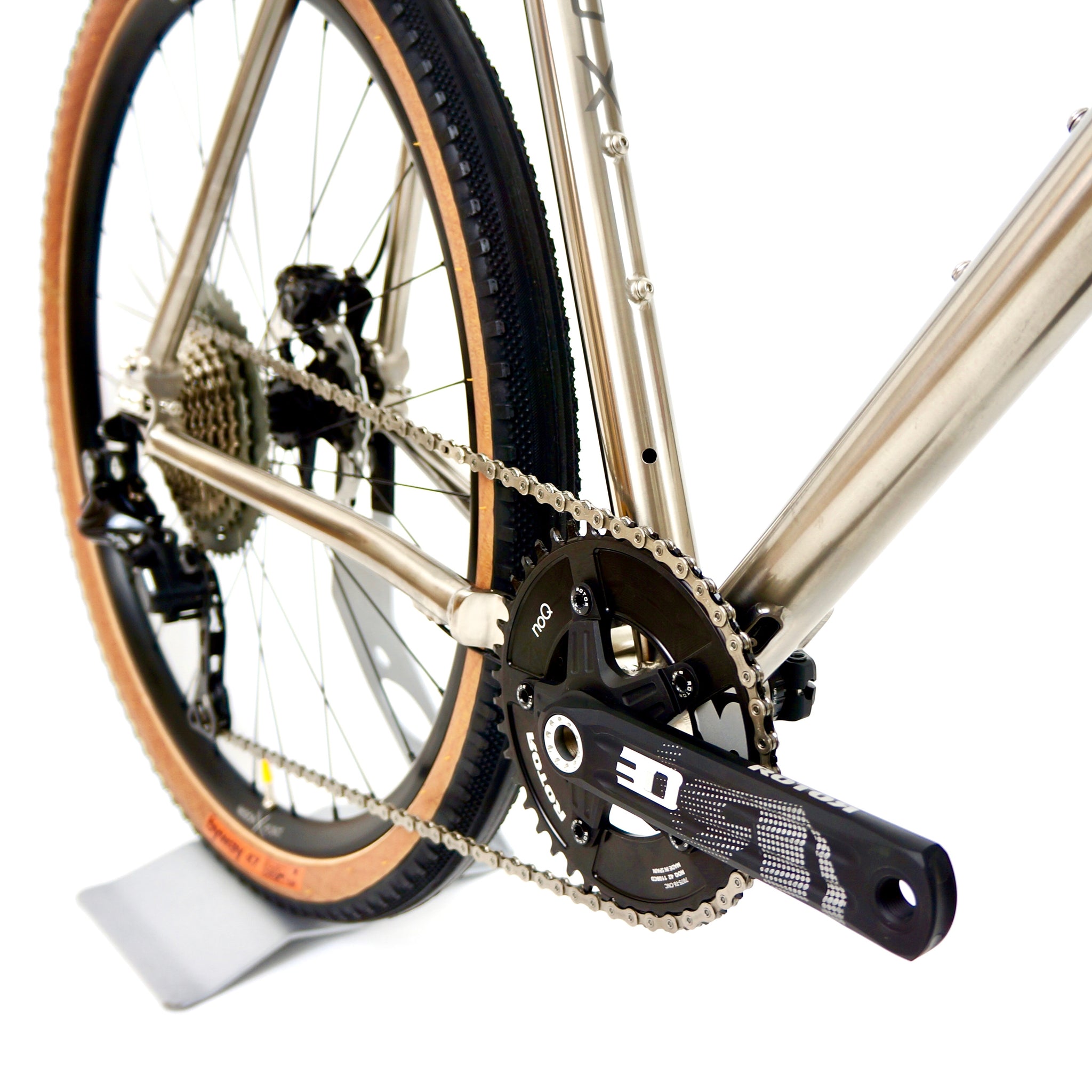

- Bottom bracket - T47 threaded
Geometry
| Size
|
52cm |
54cm |
56cm |
58cm |
| Top tube (effective mm) |
525 |
545 |
560 |
575 |
| Seat tube (centre to centre mm) |
503 |
533 |
544 |
549 |
| Head tube (mm) |
120 |
140 |
150 |
160 |
| Seat tube angle (deg) |
73.5 |
73 |
73 |
73 |
| Head tube angle (deg) |
71.2 |
71.3 |
72 |
72 |
| Front centre (mm) |
580 |
595 |
599 |
614 |
| Chain stay length (mm) |
430 |
430 |
432 |
435 |
| BB drop (mm) |
75 |
75 |
73 |
70 |
| Reach (mm) |
357 |
366 |
378 |
391 |
|
Stack (mm)
|
561 |
582 |
593 |
599 |
